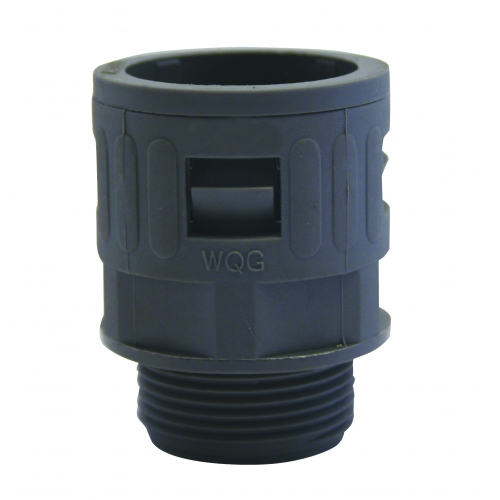

Polyamid Spiral Boru Rakoru,Kablo Rakor,Metal Rakor

  • Açıklama:Polyamid PA6 V2
    Conta:TPV
    Gövde:Polyamid PA6 V2
    Bağlantı Dişi:Metrik (EN 60423)
    Koruma Sınıfı:IP68 5 bar (o-ring ile)
    Sıcaklık Aralığı:20 °C +100 °C / -30 °C +150 °C (kısa süreli ısıya direnci)
    Özellikler:Antivibrasyon koruması
    :Uv dayanımı (talep halinde)
    :Kolay montaj
    :VDE güvencesi
    :Halojen free
    Sertifika:CE , GOST , ROHS , TUV


  • Kod/Code PG Ölçü PG SizeTD (mm)TL (mm)SW (mm)Max. H (mm)D (mm)Kablo Çapı Cable Diameter Min-Max (mm)Paket Miktarı (ad.) Quantity (pcs.)
    TPO-01 PG-713,08,015,022,017,13,0 - 6,5100
    TPO-02 PG-916,08,019,025,021,64,0 - 8,050
    TPO-03 PG-1119,08,022,028,025,05,0 - 10,050
    TPO-04 PG-13,521,09,024,029,027,86,0 - 12,050
    TPO-05 PG-1623,010,027,031,030,810,0 - 14,050
    TPO-06 PG-2129,011,033,035,037,813,0 - 18,025
    TPO-07 PG-2937,011,042,040,048,018,0 - 25,020
    TPO-08 PG-3647,013,053,049,060,022,0 - 32,010
    TPO-09 PG-4254,013,060,049,067,730,0 - 38,010
    TPO-10 PG-4859,014,065,049,072,234,0 - 44,010



    Kod/Code Metrik Ölçü Metric SizeTD (mm)TL (mm)SW (mm)Max. H (mm)D (mm)Kablo Çapı Cable Diameter Min-Max (mm)Paket Miktarı (ad.) üuantity (pcs.)
    TPO-0S M12x1,512,08,015,022,017,13,0 - 6,5100
    TPO-01 M16x1,516,010,022,028,025,05,0 - 10,050
    TPO-02 M20x1,520,010,024,029,027,86,0 - 12,050
    TPO-05 M25x1,525,010,033,035,037,813,0 - 18,025
    TPO-07 M32x1,532,018,042,040,048,018,0 - 25,020
    TPO-08 M40x1,540,018,053,049,060,022,0 - 32,010
    TPO-09 M50x1,550,018,060,049,067,730,0 - 38,010
    TPO-10 M63x1,563,018,065,049,072,234,0 - 44,010



    Kod/Code Ölçü NPT Size NPTTD (mm)TL (mm)SW (mm)Max. H (mm)D (mm)Kablo Çapı Cable Diameter Min-Max (mm)Paket Miktarı (ad.) üuantity (pcs.)
    TNO-01 NPT3/817,015,022,028,025,00,197-0,39450
    TNO-02 NPT1/221,015,024,029,029,00,236-047250
    TNO-03 NPT3/426,015,033,035,035,00,511-0,70925
    TNO-04 NPT133,018,042,040,040,00,709-0,98420
